When a spark machine stops producing sparks, panic often follows. I know how frustrating that silence can be during a live show.

To fix spark machine problems when there are no sparks, you need to check the heating system, feeding motor, and signal cables step by step. Most spark issues come from low temperature, blocked powder feed, or loose wires.

When I first faced this issue, I thought the powder was bad. Later I found the machine temperature was too low. Since then, I have learned to check everything systematically before opening the case.

Why Does Your Spark Machine Produce No Sparks at All?

The moment you press the button and nothing happens, it feels like the show just stopped breathing.

When your spark machine produces no sparks at all, check the temperature setting and sensor connection. If the temperature is below 500°C, the granules will not ignite. Also, make sure the heating light turns from yellow to green before use.

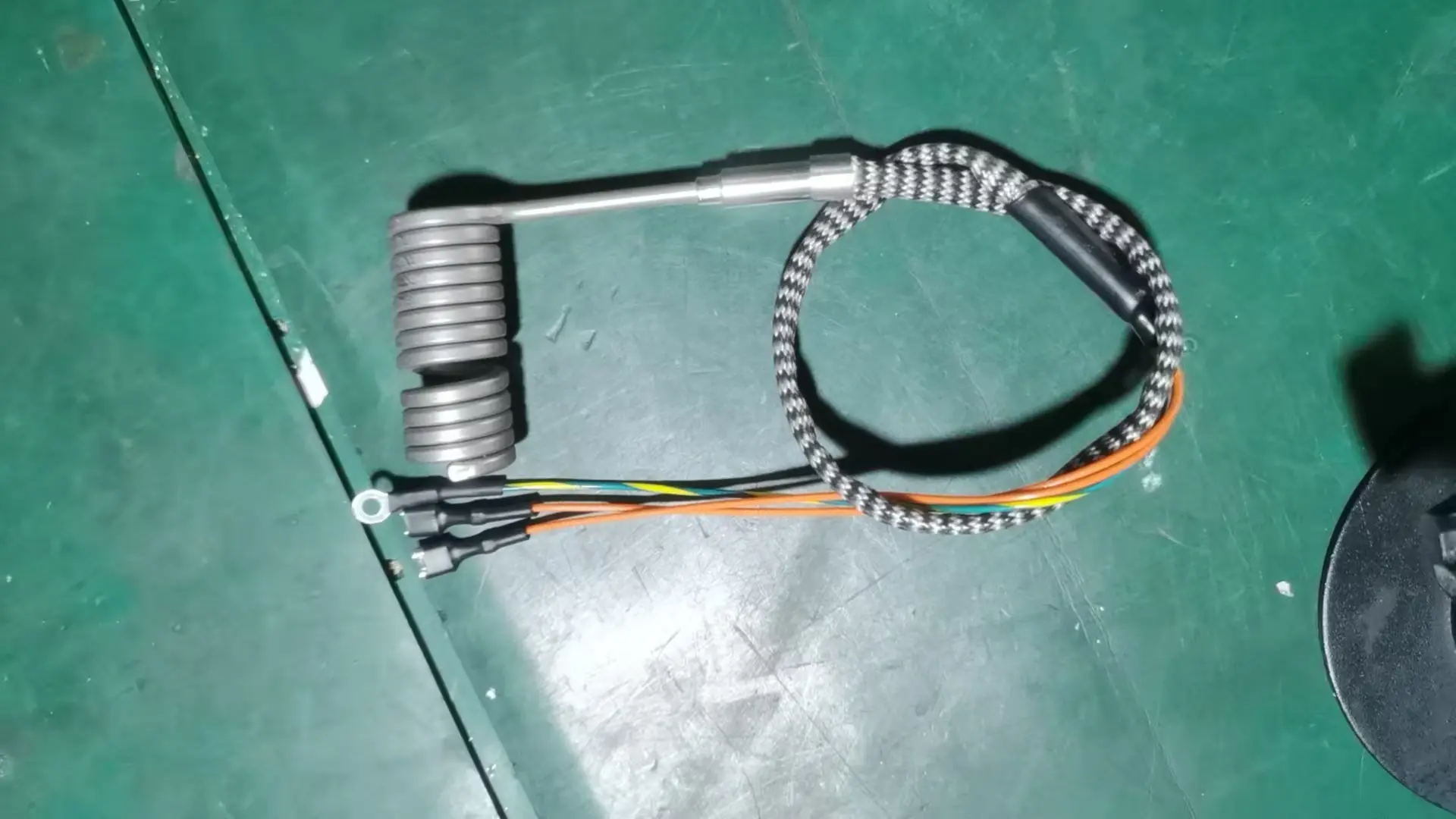

When a spark machine shows no reaction, most cases relate to the heating system. First, check if the heating light is on. If it stays yellow and never turns green, the internal temperature sensor¹ might be faulty. This sensor tells the controller when to start the feeding motor. Without proper feedback, the motor will not move, and no powder will reach the heating cup.

Use a thermometer or built-in menu to confirm the temperature reaches the set point, usually around 500–600°C. If not, reset the temperature and test again. Also, inspect the thermistor cable; a loose or burnt cable often interrupts the heating signal. Finally, check the power output on the mainboard with a multimeter to ensure stable voltage delivery. Most “no spark” issues can be fixed by replacing or reconnecting the temperature sensor.

How to Troubleshoot Low Spark Output in Spark Machines?

Sometimes sparks appear but look weak, short, and unimpressive, leaving your audience confused instead of amazed.

Low spark output in spark machines often comes from feeding problems. Check the feeding motor, screw shaft, and powder condition. Moist or clumped powder will reduce spark height and consistency.

When the feeding system is unstable, the spark height drops dramatically. Open the powder tank and stir the granules with a stick. If you see moisture, replace the powder immediately. Always store granules in a dry area, away from humid conditions.

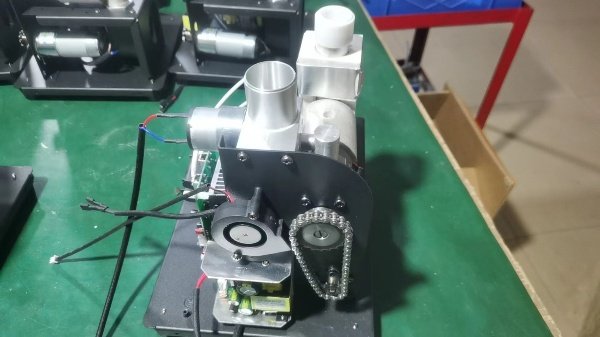

Next, check the feeding motor². You can test it by pressing the “Feed” button manually. If it makes no sound, the motor or motor driver could be damaged. Sometimes the screw shaft is blocked. Insert a screwdriver and gently rotate it by hand to release the stuck granules. If the sparks improve after this, it confirms mechanical blockage.

In rare cases, the feeding rate is set too low in the software menu. Adjust it gradually and test. Remember that overfeeding can also cause excess sparks, so fine-tuning is key. Keeping a log of your ideal settings for each event helps you avoid this issue in the future.

Why Is the Heating Light On but the Spark Machine Still Not Working?

It’s confusing when the green heating light is on, but the machine still refuses to spark.

If the heating light is on but no sparks appear, it often means the sensor wire is loose or damaged. The signal cannot reach the control board, so the system doesn’t activate the feed motor even when heating is complete.

The heating light only shows that the system believes it has reached temperature. However, this doesn’t confirm that the sensor is working properly. If the thermistor wire is broken inside the insulation, the control board³ receives a false “ready” signal. The motor will never start feeding.

To fix this, open the side panel and check both ends of the temperature sensor cable. Use a multimeter to test continuity. If there is no signal, replace the wire. In addition, inspect the connectors on the mainboard for signs of burn marks or loose pins. Cleaning and reseating them can restore stable contact. After replacement, reheat and observe whether the feeding resumes automatically.

How to Fix Continuous Heating or Yellow Light Always On in Spark Machines?

A machine that keeps heating endlessly is not only wasting energy but also risks burning the internal components.

Continuous heating or yellow light always on usually means a damaged mainboard, shorted signal line, or stuck relay. The system never receives the “stop heating” signal.

This issue is common in older spark machines with worn components. The yellow heating light indicates that the unit is in heating mode. If it never turns green, the temperature feedback loop is broken. The thermistor may have drifted out of calibration or the control relay on the mainboard is stuck closed.

To diagnose this, turn off the power, then disconnect the heating element from the mainboard. Power on again. If the light stays yellow even without the heater connected, the fault is on the board itself. Replace the relay or the full board module. In cases where the thermistor is misreading, the system keeps heating endlessly because it never senses the target temperature. Replacing the thermistor usually solves this.

For long-term prevention, keep your machine dust-free and avoid overloading the circuit with unstable power sources during shows.

Conclusion

Most spark machine spark issues come from heating and feeding faults. Check sensors, motor, and board before replacing parts.
